ZIVELAB has provided electrochemical instruments design and developemt in hardware and software.,

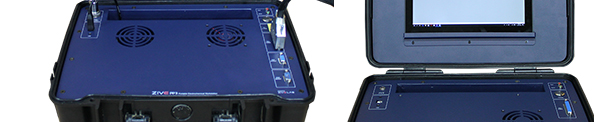

    ZIVE PP1e,  tthe portable potentiostat/galvanostat/FRA is for electrochemical test such as DC corrosion measurement, EIS test, battery/super capacitor test etc at outdoor. The system is housed in 5meter water proofed industrial plastic case with 5.4kg weight (including tablet PC) without internal battery pack, 7.7kg with internal battery pack and tablet PC.  With external PC, multiple PP1e units can be controlled as multichannel system. Internal potentiostat/galvanostat circuit is floating type to enable pipe corrosion measurement. Optional external battery pack can be used instead of AC/DC adapter. Slim style tablet PC is included as standard but you can use your notebook PC


      DAC control: Two set of high speed 16 bit DAC(50MHz) for offset & scanning

      ADC Reading: Two set of 16 bit 500kHz ADC for reading voltage/current and 1 channel                             16 bit 250kHz ADCs for auxiliary data input .



    ZIVE PP1e is equipped with a frequency response analyzer(FRA) for system as standard and it provides high performance impedance measurements over the frequency range 10uHz to 1MHz.  ZRA(zero resistance ammeter) function can measure max 1A in galvanic corrosion technique. ZIVE PP1e can be easily upgraded with  adding optional application software package without returning the system to the factory for upgrade


     Versatility

    ZIVE PP1e comes with auxiliary analog input.



     Safety

      1.  When communication failure between PC and ZIVE PP1e occurs, running channel will continue the experiments and save the data into ZIVE memory up to 295,000 data point set. When the communication is recovered, ZIVE will transfer saved data to PC. User can transfer data set from ZIVE to PC anytime. This function will be highly efficient for long time experiment.


      2. User can define safety condition setting by inputting his/her own safety levels for voltage, current, temperature etc. If the measurement value exceeds this setting value, the system will automatically stop to protect the system and cell.


      3.  If control value of voltage or current is different from measured value, the experiment will be stop automatically to protect the cell.


      4.  Automatic calibration function is supplied for user calibration.

      • The system is controlled from a PC via USB or an Ethernet connection(Future function).



     Maintenance

      1.  The system has its own hardware parameters and calibration data.

      2.  Water proofed housing



    Application

    ZIVE PP1e portable electrochemical workstation is ideal for  corrosion, sensor, battery, supercapacitor, and solar cell application



    Software (SmartManager)
    ZIVE PP1e  Portable electrochemical workstation use Smart Manager software. You can get more detailed information via above link.



    Specification

Main system

PC communication

USB2.0 High Speed

Line voltage

100-240VAC, 50/60Hz, 1Amp

Power adapter

24V @2.5A 60Watt

Size/weight

411X321X165mm(W*D*H) / 4.4kg

Max output power

15Watt

System

Cell cable

1meter shielded type (Standard)

Working, reference, counter,

Working sense,Auxiliary V

Control

DSP with FPGA

Calibration

Automatic

Data acquisition

2x16bit ADCs (500kHz)for voltage, current

ADC

1x 16bit ADCs(250kHz) for auxiliary voltage

DAC

2x16bit DAC(50MHz) for bias & scan



Filter

4ea (5Hz,1kHz,500kHz, 5MHz)

Scan rate

0 – 200V/sec
0-5000V/sec(fast scan)

Max. channel No.

16 Channels via USB connection

Internal Data Memory

295,000 points

Case

5meter water proof

Power amplifier(CE)

Power

12Watt (12V@1A)

Compliance voltage

±12V

Maximum current

±1A

Control speed selection

4ea

bandwidth

2MHz

Slew rate

10V/usec

Potentiostat mode(voltage control)

- voltage control

Control voltage range

±10V, ±1V, ±100mV

Voltage resolution

16 bit per each range

Voltage accuracy

±1mV±0.05% of setting

Max. scan range

±10V vs. ref. E

- current measurement

Current ranges

120ranges(auto/manual setting)

1nA ~ 1A

(1nA & 10nA with gain)

Current resolution

16 bit;

30uA,3uA,300nA,30nA,3nA,300pA,,

30pA,3pA, 300fA, 30fA,

Current accuracy

±10pA±0.1% of range(gain x1) >100nA fs.

Galvanostat mode(current control)

- Current control

Control current range

Max. ±1A

± full scale depending on selected range

Current resolution

16 bit;

30uA,3uA,300nA,30nA,3nA,300pA,,

30pA,3pA, 300fA, 30fA,

Current accuracy

±10pA±0.1% of range(gain x1) >100nA fs.

- Voltage measurement

Voltage ranges

10V,1V,100mV

Voltage resolution

16 bit; 0.3mV,30uV,3uV

Voltage accuracy

±1mV±0.05% of reading

Electrometer

Max input voltage

±10V

Input impedance

2x1013||4.5pF

Bandwidth

>22MHz

CMRR

>114dB

EIS(Internal FRA) for system

Frequency range

10uHz ~ 1MHz

Frequency accuracy

0.01%

Frequency resolution

5000/decade

Amplitude

0.1mV ~ 5V rms (Potentiostatic)

0.1 ~ 70% f.s(Galvanostatic)

Mode

Static EIS:

Potentiostatic, galvanostatic, pseudo-galvanostatic, OCP

Dynamic EIS:

Potentiodynamic, Galvanodynamic

Fixed frequency Impedance:

Potentiostatic, Galvanostatic, potentiodynamic, galvanodynamic

Multisine EIS:

Potentiostatic, Galvanostatic

Intermittent PEIS/GEIS

Interfaces  for system

Auxiliary port

 Auxiliary voltage inputs

1 analog Input: ±10V

For measurement of WE vs. CE

Zero Resistance Ammeter

100nA ~ 1A ranges

Software

Max steps per experiment

1000

Shutdown safety limits

Voltage, current,AuxVetc

Max. sampling rate

20kHz(50usec)-burst mode/500jHz(2usec) in fast sweep mode

Max. sampling time

unlimited

Sampling condition

Time, dv/dt, dI/dt etc.

PC requirement

Operating system

WindowsXP SP3/7/8/10

PC specification(minimum)

Pentium4, RAM 1GB

Display

1600x900 high color

USB

High speed 2.0

General

Dummy cell

One external dummy cell included

Specifications & software subject to change without notice.      ZIVELAB
