ZIVELAB has provided electrochemical instruments design and developemt in hardware and software.,

        ZIVE Zcon Impedance Monitor

    Feature

    • For versatile AC impedance experiment using external electronic load or potentiostat/galvanostat
    • 2 signal input channel(current and voltage)/1 signal output for sinewave
    • A flexible frequency generator/analyzer
    • Generate various waveforms (e.g. Sinusoidal etc)
    • Designed for spectrum analysis in the electrochemical field
    • Simulation and fitting with ZMANTM
    • High current application with external load and/or potentiostat/galvanostat
    • Software controlled function
    • Graphic-based user-interface
    • Dual real time graph (Bode, Nyquist, etc.) during measurement
    • Free analysis using ZMANTM impedance analysis software without license code



    The Zive Zcon impeddance monitor is spin off model from Zive Z#  multichannel impedance monitor. This model is for single channel application only.

    Zcon provides all tools for the application of fuel cell, battery, solar cell, super capacitor and general electrochemical study requiring EIS measurement using external electronic load or potentiostat/galvanostat.  By employing electronic load, Zcon can be used to determine the efficiency of fuel cell and anodic/cathodic process mechanism by calculating impedance with the measurements of I and E at given frequency.  The complete system is software controlled and all functions such as calibration and measurement is automated.



     ZIVE Z100 Navigator Software

    Z100 navigator is a Zcon control software. This can be used with external potentiostat/ galvanostat or electronic load by setting for impedance measurement or waveform generator.


    List of impedance techniques with Zcon

    • Frequency response analyzer (FRA)
    • High frequency resistometry (HFR)
    • Galvanostatic electrochemical impedance spectroscopy (GEIS)
    • Galvanostatic HFR (GHFR)
    • Potentiostatic EIS (PEIS)


    Transient recorder (waveform generator)
    DC/Sine/Cosine/Ramp/Sawtooth/Square/Triangular/Pulse/Multi-tone/ Arbitrary

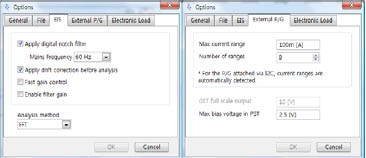

    Environment setting menu

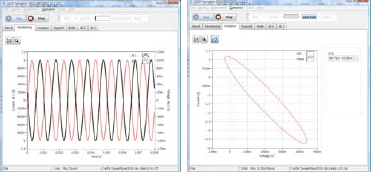

    Monitoring                                            Lassajous plot

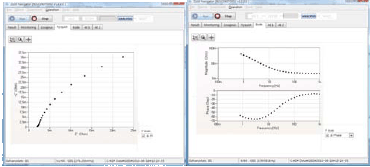

    Real time Nyquist plot                        Real time Bode Plot

    ZMANTM will be supplied for analysis of Zcon data without license code
