ZIVELAB has provided electrochemical instruments design and developemt in hardware and software.,

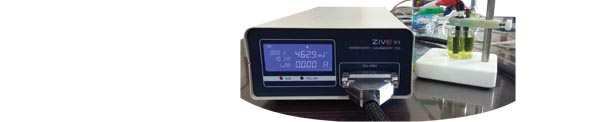

    ZIVE SP1, the compact type potentiostat/galvanostat/FRA, is the best choice for the complete DC and impedance characterization of various electrochemical application.  System is designed under FPGA and DSP control with high speed capability with


      DAC control: Two set of high speed 16 bit DAC(50MHz) for offset & scanning & one set                             of 16 bit DAC(1MHz) for auxiliary analog output control

      ADC reading: Two set of 16 bit 500kHz ADC for reading voltage/current and 1 channel                             16 bit 250kHz ADCs for auxiliary data. It can provide high frequency EIS,

                                   fast pulse techniques with options and high speed sampling time.



    ZIVE SP1 is equipped with a frequency response analyzer(FRA) for system as standard and it provides high performance impedance measurements over the frequency range 10uHz to 1MHz.  ZRA(zero resistance ammeter) function can measure max 1 A in galvanic corrosion technique. ZIVE SP1 can be easily upgraded with  adding optional application software package without returning the system to the factory for upgrade.


     Versatility

    ZIVE SP1¡¯s system comes with auxiliary voltage input.





     Safety/Maintenance

      1.  When communication failure between PC and ZIVE SP1 occurs, running channel will continue the experiments and save the data into ZIVE memory up to 542,000 data point set. When the communication is recovered, ZIVE will transfer saved data to PC. User can transfer data set from ZIVE to PC anytime. This function will be highly efficient for long time experiment.


      2.  User can define safety condition setting by inputting his/her own safety levels for voltage, current, power,AuxV etc. If the measurement value exceeds this setting value, the system will automatically stop to protect the system and cell.


      3.  If control value of voltage or current is different from measured value, the experiment will be stop automatically to protect the cell.


      4. Automatic calibration function is supplied for user calibration.  The system is controlled from a PC via USB or an Ethernet connection(Future function).



    Application

    ZIVE SP1 compact type electrochemical workstation is ideal for fundamental research in electrochemistry, development and quality assurance of new sensors, corrosion/coatings, electrode material, membrane, conducting polymer, evaluation power device research such as battery materials, fuel cells, super capacitors and solar cells.

    Software (SmartManager)

    ZIVE SP1 electrochemical workstation use SmartManager software. You can get more detailed information via above link.



    Specification

<

Main system

PC communication

USB2.0 High Speed

Line voltage

100-240VAC, 50/60Hz, 1Amp

Power adapter

24V @2A 60Watt

Size/weight

160X330X81mm(W*D*H) / 2.05kg

Max output power

12Watt

¡¡

¡¡

System

Cell cable

1meter shielded type (Standard)

¡¡

Working, reference, counter,

¡¡

Working sense,AuxV

Calibration

Automatic

Contro DAC

DSP with FPGA

2x16bit DAC(50MHz) for bias & scan

Data acquisition

2x16bit ADCs (500kHz)for voltage, current

ADC

1x 16bit ADCs(250kHz) for auxiliary voltage & temperature reading

Filter

4ea (5Hz,1kHz,500kHz, 5MHz)

Scan rate

0 – 200V/sec
0~5000V/sec in fast mode

Max. channel No.

8 Channels via USB connection

Internal Data Memory

542,000 points

¡¡

¡¡

Power amplifier(CE)

Power

12Watt (12V@1A)

Compliance voltage

±12V

Maximum current

±1A

Control speed selection

4ea

bandwidth

2MHz

Slew rate

10V/usec

¡¡

¡¡

Potentiostat mode(voltage control)

- voltage control

Control voltage range

±10V, ±1V, ±100mV

Voltage resolution

16 bit per each range

Voltage accuracy

¡¾0.02% f.s(gain x1)

Max. scan range

±10V vs. ref. E

- current measurement

Current ranges

9 ranges(auto/manual setting)

10nA ~ 1A

(10nA with gain)

Current resolution

16 bit;

30uA,3uA,300nA,30nA,3nA,300pA,

30pA,3pA (300fA with gain)

Current accuracy

¡¾0.05% f.s.(gain x1)>100nA

¡¡

¡¡

Galvanostat mode(current control)

- Current control

Control current range

Max. ±1A

± full scale depending on selected range

Current resolution

16 bit;

30uA,3uA,300nA,30nA,3nA,300pA,

30pA,3pA (300fA with gain)

¡¡

Current accuracy

¡¾0.05% f.s.(gain x1)>100nA f.s.

- Voltage measurement

Voltage ranges

10V,1V,100mV

Voltage resolution

16 bit; 0.3mV,30uV,3uV

Voltage accuracy

¡¾0.02% f.s(gain x1

¡¡

¡¡

Electrometer

Max input voltage

±10V

Input impedance

2x1013¥Ø||4.5pF

Bandwidth

>22MHz

CMRR

>114dB

¡¡

¡¡

EIS(Internal FRA) for system

Frequency range

10uHz ~ 1MHz

Frequency accuracy

0.01%

Frequency resolution

5000/decade

Amplitude

0.1mV ~ 5V rms (Potentiostatic)

0.1 ~ 70% f.s(Galvanostatic)

Mode

Static EIS:

Potentiostatic, galvanostatic, pseudo-galvanostatic, OCP

Dynamic EIS:

Potentiodynamic, Galvanodynamic

Fixed frequency Impedance:

Potentiostatic, Galvanostatic, potentiodynamic, galvanodynamic

Multisine EIS:

Potentiostatic, Galvanostatic

Intermittent PEIS/GEIS¡¡

¡¡

¡¡

Interfaces  for system¡¡

Auxiliary port

¡¡

Auxiliary voltage input

1 analog input: ¡¾10V

Zero Resistance Ammeter

100nA ~ 1A ranges

External booster interface

Via booster I/F cable

Sync terminal

For channel synchronizing

¡¡

¡¡

Software¡¡

Max steps per experiment

1000

Shutdown safety limits

Voltage, current, power, AuxV etc.

Max. sampling rate

2usec or 3usec depending on data point number

Max. sampling time

unlimited

Sampling condition

Time, dv/dt, dI/dt etc.

¡¡

¡¡

PC requirement¡¡

Operating system

Windows 7/8/10(32bit/64bit OS)

PC specification(minimum)

Pentium4, RAM 1GB or higher

Display

1600x900 high color or higher

USB

High speed 2.0

¡¡

¡¡

General¡¡

Dummy cell

One external dummy cell included

Impedance analysis S/W

ZMAN¢â software

DC data analysis S/W

IVMAN¢â software package

Specifications & software subject to change without notice.      ZIVELAB

Windows is a registered trade mark of Microsoft Corporation.
